Specifications
MountingSurface Mount
Output TypeRegulated
Nominal Input Voltage (VDC)16
Input Voltage Range - Regulated Output (VDC)8 - 24
Single Output Voltage (VDC)3.3
Output Min. Current (mA)45.5
Output Max. Current (mA)455
Max Output Power (W)1.5
Line Regulation Vin Min to Vin Nom to Vin Max (±%)3
Load Regulation 25% Load to Nom load to Max Load (±%)3
Efficiency @ Full Load at Nominal Input Voltage Typical (%)72
Input Current @ Full Load Typical at Nominal Input Voltage (mA)130
Typical Output Voltage Ripple @ Full Load 1 MHz BW (Vp-p)0.2
Full Load Output Voltage Tolerance (±VDC)0.066
Ambient Operating Temperature Range (°C)-25 to +70
Ambient Storage Temperature Range (°C)-55 to +125
CoolingFree Air Convection
Output Temperature Coefficient (%/°C)0.02
Dimensions - L x W x H (in)1.12 x 0.7 x 0.35
Weight (grams)10
Moisture Sensitivity Level3
CaseGlass Reinforced Polymer
PottingVacuum Impregnated Epoxy
Isolation Voltage (VDC)1500
Operating Frequency (kHz)100
Short Circuit ProtectionTemporary
Control FeatureYes
Description

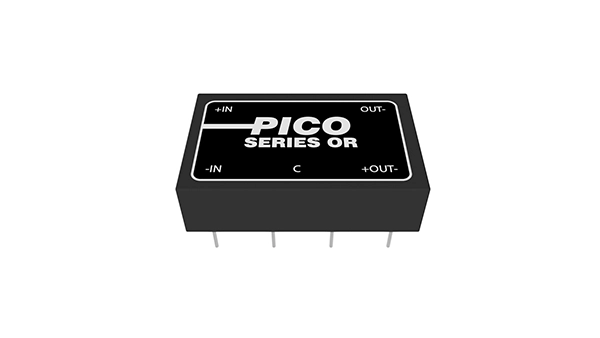

The OR & SOR series are isolated/regulated DC-DC converters with wide input range, tight regulation in a low profile package and feature shutdown control. Single and dual isolated output models are standard. They can operate up to 2.5W over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.
