Specifications
MountingThrough Hole
Output TypeRegulated
Nominal Input Voltage (VDC)48
Input Voltage Range - Regulated Output (VDC)36 - 80
Single Output Voltage (VDC)24
Output Min. Current (mA)12.5
Output Max. Current (mA)125
Max Output Power (W)3
Line Regulation Vin Min to Vin Nom to Vin Max (±%)1
Load Regulation 25% Load to Nom load to Max Load (±%)2
Efficiency @ Full Load at Nominal Input Voltage Typical (%)66
Typical Output Voltage Ripple @ Full Load (Vp-p)0.015
Full Load Output Voltage Tolerance (±VDC)0.48
Ambient Operating Temperature Range (°C)-25 to +70
Ambient Storage Temperature Range (°C)-55 to +105
CoolingFree Air Convection
Output Temperature Coefficient (%/°C)0.02
Dimensions - L x W x H (in)1.5 x 1.5 x 0.5
Weight (grams)34
CaseDiallyl Phthalate (DAP)
PottingVacuum Impregnated Epoxy
Isolation Voltage (VDC)1000
Operating Frequency (kHz)200 to 1000
Short Circuit ProtectionContinuous
Description

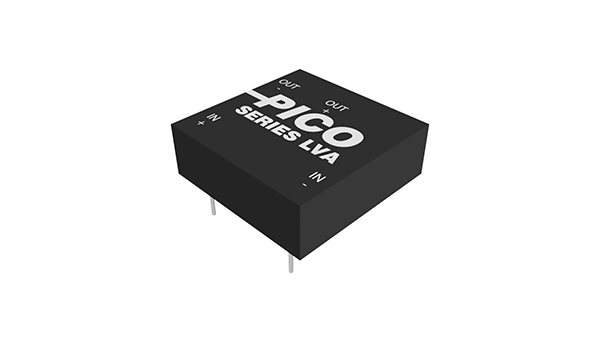

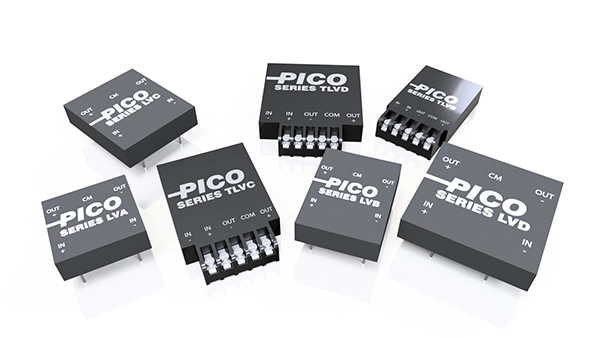

The LV & TLV series are regulated DC-DC converters with a wide 36 to 80V input range and low profile – 0.500″. Over 70 models are available in both single and dual outputs, through hole and terminal strip. They can operate over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.
