48361

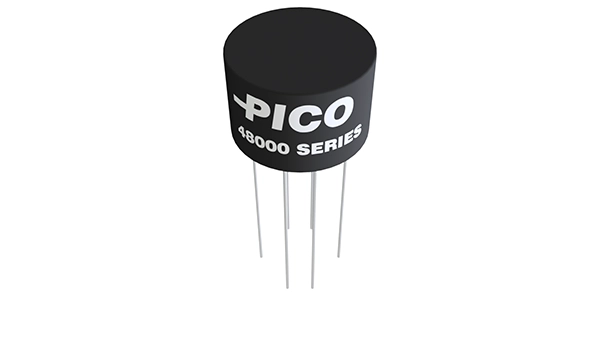

Series 46000 to 52000 – Common Mode Choke
Specifications
MountingThrough Hole
WindingsDual Winding
Inductance (μH) per winding185
Irms (A) at 25ºC rise max.2.04
Irms (A) at 40ºC rise max.2.39
Irms (A) at 60ºC rise max.2.80
DC Resistance (Ω) per winding0.038
Typical Leakage Inductance (μH)4.5
Winding Balance (%)±1
Dielectric Withstanding Voltage (Vrms)1500
Operational Temperature (°C)-55 to +130
Typical Weight (g)6.8
Size (D x H) inches0.63" x 0.42"
CaseEpoxy Insulated Metal
Construction Encapsulated
Manufactured toMIL-PRF-27
Description
Pico’s Common Mode EMI Chokes are highly effective in suppressing electromagnetic interference and radio frequency interference, where high-frequency noises are blocked to allow DC and low-frequency AC signals to pass through. These noise suppression devices can be offered in common mode or differential mode operations. They are extremely reliable in the performance of electronic systems where security of data and information are crucial, as well as mechanically durable to the integrity of mission systems.
