AC-DC Power Supplies

Pico offers a complete line of AC-DC modules for Military, COTS and Industrial applications including Power Factor Corrected modules to create a 365 VDC rail up to 2,000 Watts or Isolated AC-DC modules with PFC and universal inputs with output voltages of up to 300 VDC and power ratings to 300 Watts with single or three phase inputs.

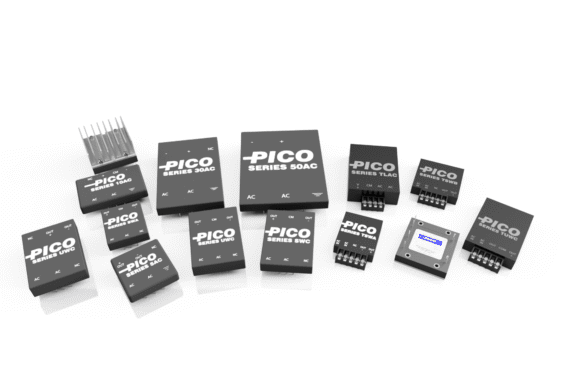

Single and dual output switchers are also available from 3 to 50 Watts, isolated and fully encapsulated for harsh environments. Count on our variety of products to help in optimizing your design options.

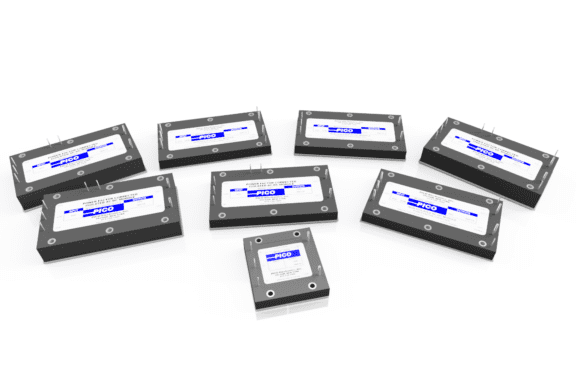

AC-DC Power Factor Corrected modules with universal input voltages and 47-440 Hz operating frequency, power to 2000 Watts. All units meet the harmonic distortion requirements of en/iec 61000-3-2.

Note: All PICO products can be modified to your specifications. Please contact us for information.

To view complete series and specifications click on part number.
Search Results: 278 matches based on your selection
Part Number Minimum Input Voltage (VAC) Maximum Input Voltage (VAC) Minimum Input Line Frequency Range (Hz) Maximum Input Line Frequency Range (Hz) Output Voltage (V DC) Dual Output Voltage (± VDC) MAIN OUTPUT VOLTAGE Output Voltage (VDC) AUXILIARY OUTPUT VOLTAGE (± VDC) Max Load Current (mA) Max Load Current Per Output (mA) MAIN OUTPUT VOLTAGE Max Load Current (mA) AUXILIARY OUTPUT VOLTAGE Max Load Current per Output (mA) Max Output Power (Watt) Max Output Power per Output (Watt) MAIN OUTPUT POWER Max Output Power (Watt) AUXILIARY OUTPUT POWER Max Power per Output (Watt) Efficiency at Full Load Typical (%) Output Ripple at Full Load 1-1 MHz BW (mv p-p) MAIN OUTPUT VOLTAGE Ripple at Full Load 1-1 MHz BW (mv p-p) AUXILIARY OUTPUT VOLTAGE Ripple at Full Load 1-1 MHz BW (mv p-p) Output Voltage Tolerance (±%) Voltage Load Regulation 10-100% Load (±%)
5AC5S 90 130 47 440 5.00 1000 5.00 72 50 0.5 0.50
5AC12S 90 130 47 440 12.00 417 5.00 75 50 0.5 0.50
5AC15S 90 130 47 440 15.00 333 5.00 75 50 0.5 0.50
5AC24S 90 130 47 440 24.00 208 5.00 76 50 0.5 0.50
5AC5D 90 130 47 440 5 500 2.5 72 50 0.5 0.50
5AC12D 90 130 47 440 12 209 2.5 75 50 0.5 0.50
5AC15D 90 130 47 440 15 167 2.5 75 50 0.5 0.50
10AC5S 90 130 47 440 5.00 2000 10.00 75 50 0.5 0.50
10AC12S 90 130 47 440 12.00 833 10.00 77 50 0.5 0.50
10AC15S 90 130 47 440 15.00 666 10.00 79 50 0.5 0.50
10AC24S 90 130 47 440 24.00 416 10.00 80 50 0.5 0.50
10AC5D 90 130 47 440 5 1000 5.0 75 50 0.5 0.50
10AC12D 90 130 47 440 12 417 5.0 77 50 0.5 0.50
10AC15D 90 130 47 440 15 333 5.0 80 50 0.5 0.50
10AC5T12 90 130 47 440 5 12 1400 125 7.00 1.50 77 50 50
10AC5T15 90 130 47 440 5 15 1400 100 7.00 1.50 77 50 50
10AC12T5 90 130 47 440 12 5 583 300 7.00 1.50 77 50 50
10AC15T5 90 130 47 440 15 5 466 300 7.00 1.50 79 50 50
30AC5S 90 130 47 440 5.00 5000 25.00 75 50 0.5 0.50
30AC12S 90 130 47 440 12.00 2500 30.00 81 50 0.5 0.50
30AC15S 90 130 47 440 15.00 2000 30.00 82 50 0.5 0.50
30AC24S 90 130 47 440 24.00 1250 30.00 83 50 0.5 0.50
30AC28S 90 130 47 440 28.00 1070 30.00 83 50 0.5 0.50
30AC5D 90 130 47 440 5 2500 12.5 76 50 0.50
30AC12D 90 130 47 440 12 1250 15.0 78 50 0.50
30AC15D 90 130 47 440 15 1000 15.0 80 50 0.50
30AC5T12 90 130 47 440 5 12 4000 208 20.00 2.50 78 50 50
30AC5T15 90 130 47 440 5 15 4000 166 20.00 2.50 78 50 50
30AC12T5 90 130 47 440 12 5 2080 500 25.00 2.50 80 50 50
30AC15T5 90 130 47 440 15 5 1660 500 25.00 2.50 80 50 50
50AC5S 90 130 47 440 5.00 9000 45.00 75 50 1.0 0.75
50AC12S 90 130 47 440 12.00 4583 55.00 80 50 0.30
50AC15S 90 130 47 440 15.00 3667 55.00 83 50 0.30
50AC24S 90 130 47 440 24.00 2292 55.00 86 50 0.30
50AC28S 90 130 47 440 28.00 1964 55.00 86 50 0.30
50AC5D 90 130 47 440 5 4500 22.5 75 50 1.0 0.75
50AC12D 90 130 47 440 12 2291 27.5 80 50 0.30
50AC15D 90 130 47 440 15 1833 27.5 83 50 0.30
50AC5T12 90 130 47 440 5 12 8000 208 40.00 2.50 75 50 50
50AC5T15 90 130 47 440 5 15 8000 167 40.00 2.50 75 50 50
50AC12T5 90 130 47 440 12 5 3750 500 45.00 2.50 77 50 50
50AC15T5 90 130 47 440 15 5 3000 500 45.00 2.50 79 50 50
H5AC5S 170 240 47 440 5.00 1000 5.00 72 50 0.5 0.50
H5AC12S 170 240 47 440 12.00 417 5.00 75 50 0.5 0.50
H5AC15S 170 240 47 440 15.00 333 5.00 75 50 0.5 0.50
H5AC24S 170 240 47 440 24.00 208 5.00 76 50 0.5 0.50
H5AC5D 170 240 47 440 5 500 2.5 72 50 0.5 0.50
H5AC12D 170 240 47 440 12 209 2.5 75 50 0.5 0.50
H5AC15D 170 240 47 440 15 167 2.5 75 50 0.5 0.50
H10AC5S 170 240 47 440 5.00 2000 10.00 75 50 0.5 0.50
